Company introduction
Hannai Fiberglass Company is a leading global manufacturer and supplier of fiberglass, providing professional product customization and complete sets of fiberglass technology solutions. Compliant with international standards, after nearly 30 years of unremitting efforts, we currently have four production factories, 22 advanced fully automatic microcomputer intelligent control production lines, and over 180 models of fiberglass series products, which are exported to dozens of countries and regions.
Fiberglass bend
Fiberglass/FRP bend are formed by manually laying them on top. There are three structural forms of manually overlapped GRP/FRP elbows. They are integral molding on the mold, semi modular molding, prefabricated pipe, and shrimp joint molding.
Specifications
| Nominal diameter (mm) | Internal diameter （mm） | 0.6 Megapascals | 1.0 Megapascals | 1.6 Megapascals |
| Top height (mm) | Top height (mm) | Top height (mm) | ||
| 10 | 15 | 5.5 | 5.5 | 5.5 |
| 15 | 22.5 | 5.5 | 5.5 | 5.5 |
| 20 | 30 | 5.5 | 5.5 | 5.5 |
| 25 | 37.5 | 5.5 | 5.5 | 5.5 |
| 32 | 48 | 5.5 | 5.5 | 5.5 |
| 40 | 60 | 5.5 | 5.5 | 5.5 |
| 50 | 75 | 5.5 | 5.5 | 5.5 |
| 65 | 97.5 | 5.5 | 5.5 | 5.5 |
| 80 | 120 | 5.5 | 5.5 | 5.5 |
| 100 | 150 | 5.5 | 5.5 | 9.4 |
| 125 | 187.5 | 5.5 | 5.5 | 9.4 |
| 150 | 225 | 5.5 | 9.4 | 10.9 |
| 200 | 300 | 7.1 | 9.8 | 12.9 |
| 250 | 375 | 9.4 | 10.4 | 15.2 |
| 300 | 450 | 9.4 | 13.3 | 17.3 |
| 350 | 525 | 9.8 | 15.8 | 19.6 |
| 400 | 600 | 10.6 | 16.8 | 23.8 |
| 450 | 675 | 13 | 18.3 | 26.2 |
| 500 | 750 | 13.7 | 18.9 | 26.2 |
| 600 | 900 | 16.2 | 22.7 | 27.6 |
| 700 | 1050 | 18.6 | 24.5 | 37.2 |
| 800 | 1200 | 18.6 | 28.3 | 43.8 |
| 900 | 1350 | 20 | 30.2 | 48.3 |
| 1000 | 1500 | 22.9 | 33.2 | 52.6 |

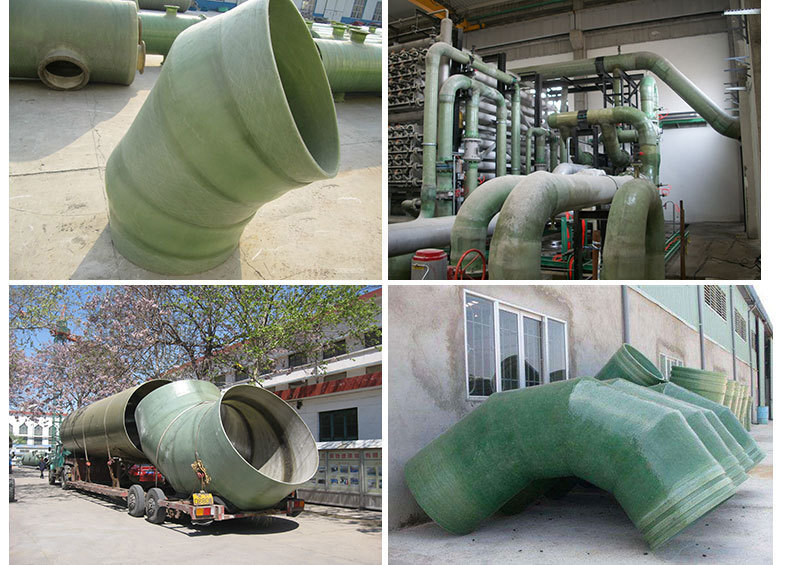

Product Display
